Demystifying UML: A Comprehensive Guide to Class and Object Diagrams with Visual Paradigm

Introduction

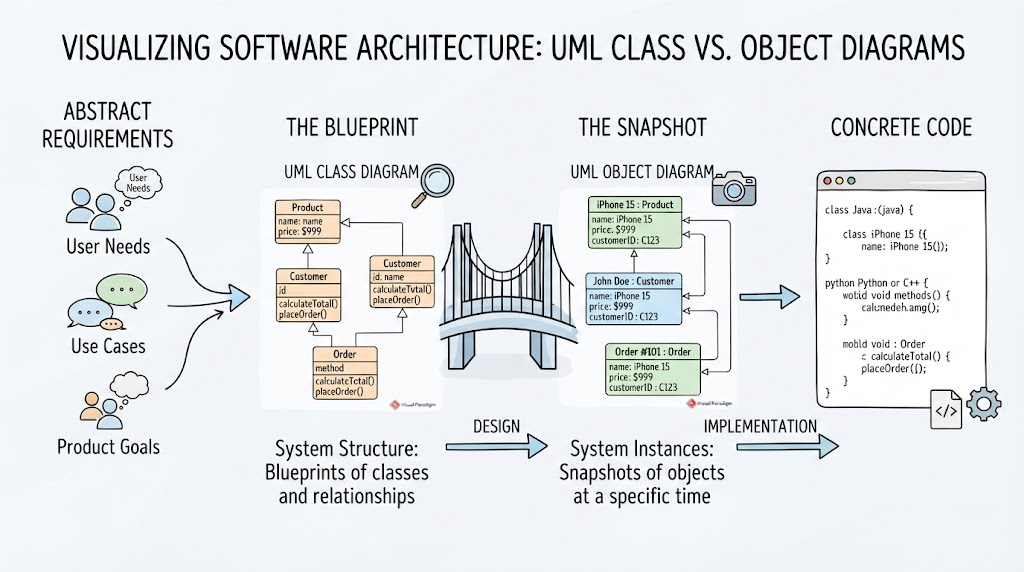

In the world of software engineering, bridging the gap between abstract requirements and concrete code is one of the most critical challenges teams face. Unified Modeling Language (UML) serves as this bridge, providing a standardized visual language to specify, visualize, construct, and document software systems. Among the various UML diagram types, Class Diagrams and Object Diagrams are foundational to Object-Oriented Design (OOD). They allow developers and product managers to map out system architecture before writing a single line of code.

This guide explores the core concepts of UML Class and Object diagrams, illustrating how they function as blueprints and snapshots respectively. Using Visual Paradigm, a leading modeling tool, we will examine practical e-commerce examples to demonstrate how these diagrams translate theoretical design into tangible system specifications. Whether you are an experienced Product Manager or a developer refining your architectural skills, understanding these diagrams is essential for building robust, scalable software.

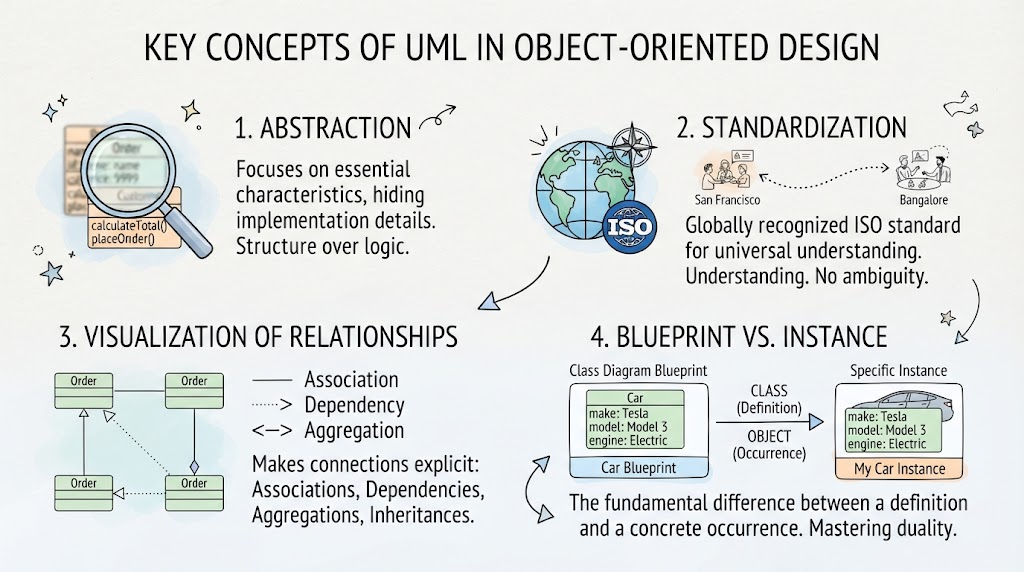

Key Concepts of UML in Object-Oriented Design

Before diving into specific diagrams, it is important to understand the underlying principles that make UML effective for OOD:

• Abstraction: UML allows teams to focus on essential system characteristics while ignoring irrelevant details. A class diagram doesn’t show implementation logic; it shows structure and relationships.

• Standardization: Because UML is an ISO standard, a diagram created in San Francisco can be understood by a development team in Bangalore without ambiguity.

• Visualization of Relationships: Code hides relationships within files and imports. UML makes associations, dependencies, aggregations, and inheritances explicit and visual.

• Blueprint vs. Instance: A crucial distinction in UML is the difference between the definition of a thing (Class) and a specific occurrence of that thing (Object). Mastering this duality is key to effective modeling.

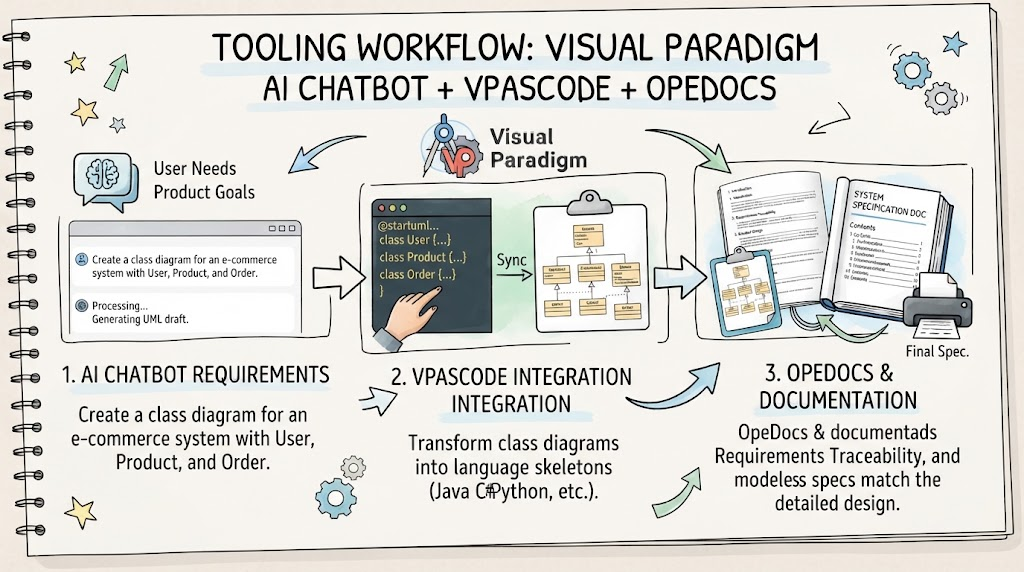

Tooling Spotlight: Visual Paradigm

• Visual Paradigm streamlines the software design lifecycle by integrating AI capabilities directly into modern architecture workflows.


• Core Workflow Phases

  • AI Chatbot Requirements: Translates abstract user needs and product goals into structured UML drafts through natural language prompts.

  • VPasCode Integration: Connects text-based syntax (such as PlantUML) instantly with visual models, ensuring immediate synchronization between code and diagrams.

  • OpeDocs & Documentation: Automates specification generation to maintain requirement traceability and keep design models perfectly aligned with final documentation.

The Class Diagram: The System Blueprint

A Class Diagram is a static structure diagram that describes the system’s classes, their attributes, operations (methods), and the relationships among objects. It is the primary blueprint for any object-oriented system.

Core Components

• Class Name: Appears at the top, usually bolded.

• Attributes: Variables that hold data (e.g., sku, unitPrice). Visibility is denoted by symbols (+ public, - private, # protected).

• Operations: Methods or behaviors the class can perform (e.g., calculateSubtotal()). Return types are specified after a colon.

• Relationships: Lines connecting classes indicating association, aggregation, composition, inheritance, or dependency.

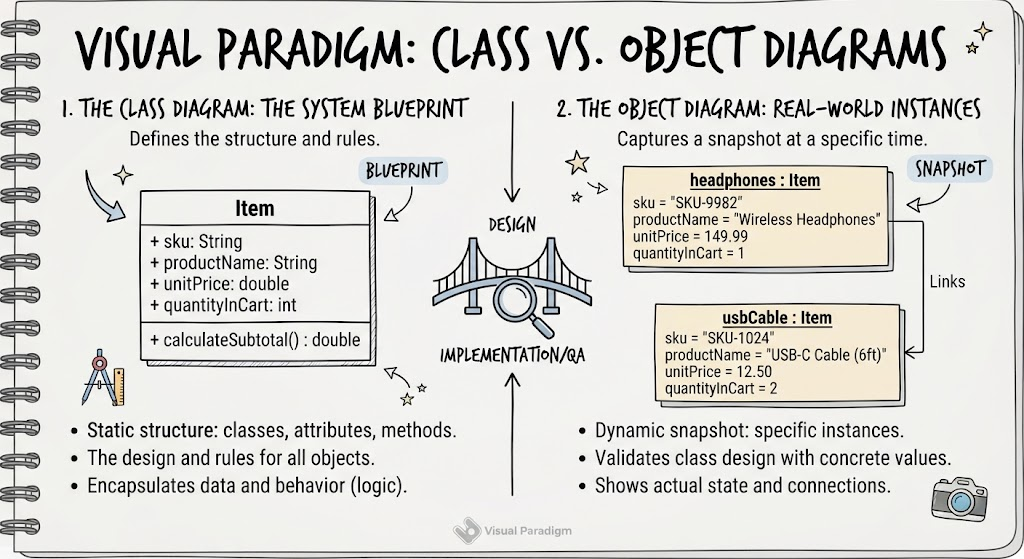

Example: E-Commerce Item Class

Below is the blueprint for a product in an e-commerce shopping cart. This diagram defines what any item must possess, without specifying a particular product.

@startuml
class Item {
    + String sku
    + String productName
    + double unitPrice
    + int quantityInCart
    + calculateSubtotal() : double
}
@enduml

Analysis:
This Item class encapsulates all necessary data for a shopping cart entry. The + signs indicate public visibility, meaning external components (like a Cart Manager) can access these properties directly. The calculateSubtotal() method demonstrates encapsulation of business logic—rather than having external code multiply price by quantity, the Item itself owns this responsibility. In Visual Paradigm, this PlantUML can be edited via VPasCode to instantly update the visual representation.

The Object Diagram: Real-World Instances

While class diagrams define structure, Object Diagrams capture a snapshot of the system at a specific moment in time. They show actual instances of classes with concrete values. This is invaluable for validating class designs against real-world scenarios and for debugging complex state interactions.

Core Components

• Instance Specification: Written as objectName : ClassName, typically underlined to distinguish from classes.

• Concrete Values: Attributes are assigned specific runtime values (e.g., sku = "SKU-9982").

• Links: Represent actual connections between specific objects (as opposed to abstract associations in class diagrams).

Example: Shopping Cart Snapshot

The following diagram shows two specific items currently residing in a user’s cart. This validates that our Item class blueprint can adequately represent real products.

@startuml
object "headphones : Item" as hp {
    sku = "SKU-9982"
    productName = "Wireless Headphones"
    unitPrice = 149.99
    quantityInCart = 1
}

object "usbCable : Item" as usb {
    sku = "SKU-1024"
    productName = "USB-C Cable (6ft)"
    unitPrice = 12.50
    quantityInCart = 2
}
@enduml

Analysis:
Notice how each object conforms strictly to the Item class definition but carries unique state. The headphones object has a quantity of 1, while usbCable has 2. If we were to call calculateSubtotal() on usbCable, it would return 25.00. Object diagrams like this are particularly useful during sprint planning or QA testing to verify that the data model handles edge cases (e.g., multiple quantities, decimal pricing) correctly before implementation.

Best Practices for Effective UML Modeling

1. Start with Classes, Validate with Objects: Always design the class structure first, then create object diagrams to test whether the design holds up with realistic data.

2. Don’t Over-Model: UML should clarify, not complicate. Only include attributes and methods relevant to the current design discussion.

3. Leverage Tooling: Use tools like Visual Paradigm’s VPasCode to maintain synchronization between textual definitions and visual diagrams. This reduces drift and improves collaboration between architects and developers.

4. Use Object Diagrams for Communication: When explaining system behavior to non-technical stakeholders or new team members, object diagrams with real data are often more intuitive than abstract class structures.

5. Maintain Traceability: Link your UML diagrams back to user stories or requirements. Visual Paradigm supports requirement tracing, ensuring every modeled element serves a business purpose.

Conclusion

UML Class and Object Diagrams remain indispensable tools in modern software development, despite the rise of agile and lightweight methodologies. Class diagrams provide the architectural blueprint that ensures consistency and scalability, while object diagrams ground those abstractions in reality, validating designs against actual use cases.

By leveraging professional tooling like Visual Paradigm, teams can streamline the modeling process, maintain living documentation, and foster better communication across product, design, and engineering disciplines. Whether you’re designing a simple shopping cart or a complex enterprise system, mastering these two diagram types will significantly enhance your ability to translate ideas into well-structured, maintainable software. Remember: good design isn’t about drawing perfect diagrams—it’s about thinking clearly, and UML is the language that makes that thinking visible.
